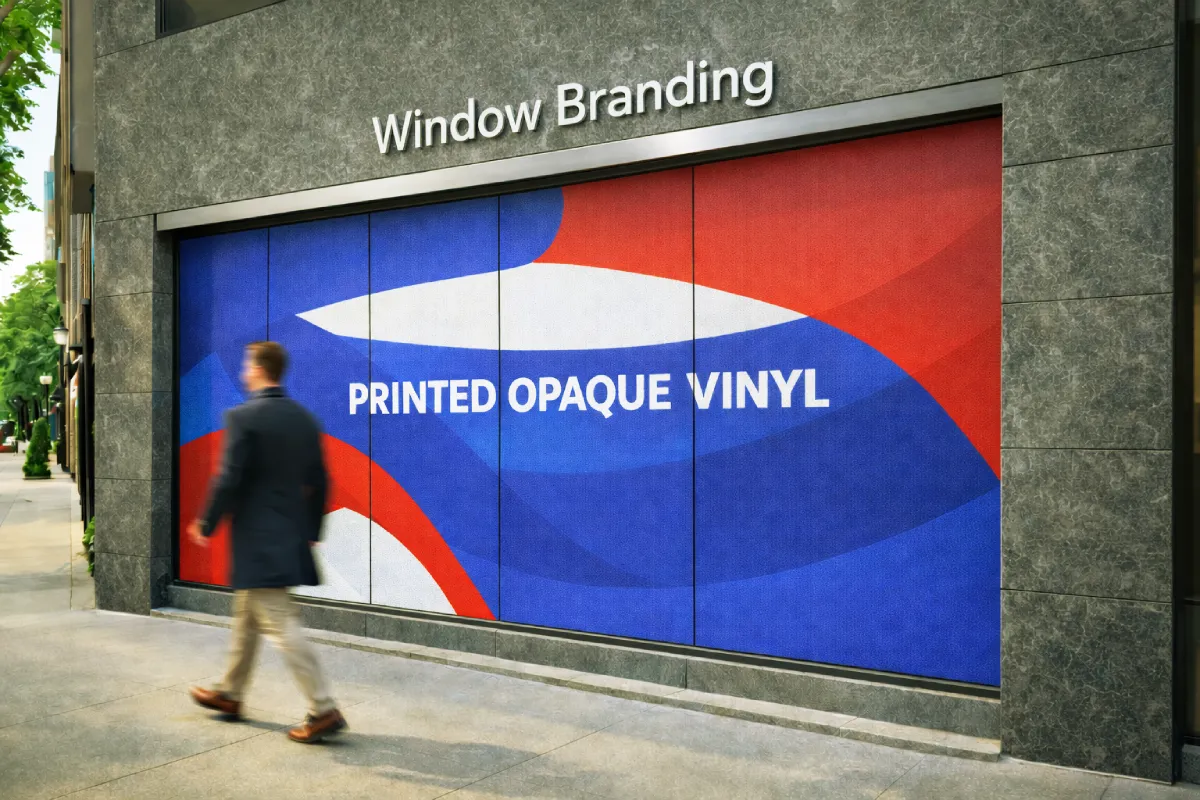

Opaque Window Vinyl & Blockout Graphics
Achieve 100% visual blockout with high-resolution printed window vinyl. Engineered with grey-back adhesive for total opacity, ensuring seamless branding for Abu Dhabi retail hoardings, offices and storefronts.
What Opaque Window Vinyl Covers
Printed opaque blockout film is a polymeric calendered print film applied to flat commercial glass to deliver 100% light blockout across the full glazed surface. The primary material for this application is 3M Controltac Print Film 40C-10R or 40C-20R — manufacturer-specified for flat-glass blockout graphics, promotional window graphics, and storefront opaque applications on interior and exterior building windows.
This film family is selected when glass must function as a solid, non-transparent surface — where privacy and a high-saturation print face are required on the same pane.
Manufacturer-recommended end uses include interior and exterior building windows and dividers. A second-tier option, Avery MPI 2105 Easy Apply RS, is available where long-term removability is a confirmed project specification requirement.
Key Specification Facts
- Film construction: polymeric calendered print film — flat glass only; not suitable for curved or contoured surfaces.
- Primary material: 3M Controltac Print Film 40C-10R or 40C-20R, manufacturer-specified for storefront opaque graphics.
- Second-tier option: Avery MPI 2105 Easy Apply RS — 80-micron polymeric calendered vinyl, grey acrylic adhesive.
- Heat-assisted removal within the 7-year expected performance life of the 3M Controltac lead material.
.jpg)
Pricing, Delivery Timeline and Warranty Coverage
Projects vary by specification, material finish, and site access conditions. The figures below are for budgeting guidance only. Final pricing, lead time, and warranty are confirmed after locking project scope, technical review, and TAMM permit sequencing.
Quoting & Price Ranges
- Total square meterage and number of glass panels or surfaces
- Material grade — 3M Controltac 40C lead or Avery MPI 2105 second-tier
- Finish selection — matte or gloss overlaminate where applicable
- Installation height and access requirements — ladders, scaffold, or manlift
- Removal of existing graphics and surface preparation condition
- After-hours or phased installation coordination for occupied or security-access sites
Indicative Price Range in AED
85
-
265
SQM Supply and install
.svg)
Project Lead Time
Project timelines vary by total area, design complexity, and site access conditions including working height and surface condition. Production begins after final artwork approval is received. Standard applications on clean, flat, ground-level glass can be installed at 80–120 sqm per day. Complex work — multi-panel glazing, high-level installations, difficult substrates, or restricted-access sites — will require additional time based on scope and confirmed site conditions.
- Standard flat, ground-level glass: 80–120 sqm per day
- High-level installations or scaffold-dependent access: allow additional planning time
- After-hours or phased handovers: coordinated and confirmed at booking stage
Warranty and Aftercare
12 Months (Indoor Applications)
3 Months (Outdoor Applications)
Warranty Coverage Includes
- Adhesion and edge stability — peeling, lifting, or bubbling attributable to installation defects
- Workmanship and alignment — trimming, joins, clean edges, and logo cutouts where applicable
- Print and finish quality verified against approved artwork for all printed graphics
- Material performance under normal use — vinyl, film, and laminate integrity within rated application
Exclusions
Damage after handover, impact/abrasion, cleaning chemicals, moisture ingress from substrate issues, and removal/re-application by others.
Technical Specifications: Opaque Vinyl & Blockout Graphics
- Film Construction — Polymeric Calendered Print Film. 3M Controltac 40C-10R or 40C-20R is a polymeric calendered print film for flat-glass blockout graphics, promotional window graphics, and storefront opaque applications on vertical building glass. Not a cast film and not suitable for curved or complex glass surfaces.
- Coverage Grade — 100% Blockout. Opaque blockout film delivers full visual blockout with no transparency from either side of the glass. Its key distinction from one-way vision perforated film, which retains partial see-through when printed. Coverage is full-surface; no partial-opacity variant exists within this film family.
- Adhesive and Removability — Heat-Assisted. 3M Controltac 40C-10R and 40C-20R is removable with heat within its 7-year expected performance life. Second-tier Avery MPI 2105 Easy Apply RS carries up to 4 years long-term removability with grey acrylic adhesive. Removal method confirmed per project specification.
- Finish Options — Matte or Gloss Overlaminate. Matte reduces surface glare for interior-facing or ambient-lit applications. Gloss is used for exterior-facing graphics where colour vibrancy is the priority. Overlaminate protects the printed surface; finish is confirmed per project based on viewing conditions.
- Performance Life — Up to 7 Years Outdoor. 3M Controltac 40C-10R and 40C-20R carries an expected performance life of 7 years on a flat, vertical, outdoor surface. Glass condition and coverage level confirmed per project; actual service life in Abu Dhabi may vary with sun exposure, glass orientation, and print density.
Where Printed Opaque Vinyl & Blockout Graphics Works Best
- Retail Fit-Out and Coming-Soon Wraps. Shopfront operators across Khalifa City, Al Raha, and Mohammed Bin Zayed City specify opaque blockout film during fit-out and pre-opening phases to maintain a professional exterior. The film covers the full glass surface with a branded, printed facade while interior renovation or stock build-up continues — replacing unfinished windows with a commercial-grade presentation.
- Privacy Partitions — Clinics, Salons, and Storerooms. Back-of-house glass in clinics, salons, server rooms, and storerooms requires 24/7 visual blockout regardless of interior lighting conditions. Opaque blockout film meets this requirement where one-way vision perforated film cannot: there is no partial transparency, no view-through, and no light bleed from either direction at any time.
- High-Impact Showroom and Retail Advertising. External glass on Abu Dhabi showrooms and retail units is specified with opaque blockout film when high-resolution photography, complex brand patterns, or full-saturation colour output is required. The solid backing delivers greater colour depth and print fidelity than perforated media, where dot structure reduces image density and colour impact.
- Substrate Recovery — Covering Legacy Branding or Surface Imperfections. Opaque blockout film is specified over glass panels carrying staining, legacy adhesive, or old graphics that cannot be cleanly removed. It recovers the visual surface and delivers a clean, print-ready exterior without glass replacement, while the underlying substrate condition is assessed or managed separately.
The Commercial Case for Opaque Window Vinyl
- Professional Renovation Concealment. Opaque blockout film replaces improvised concealment — brown paper or raw hoarding — with a branded exterior. For Abu Dhabi retail units in managed commercial properties, this maintains property standards throughout the fit-out phase without additional temporary structures.
- Superior Print Saturation Over Perforated Media. Opaque blockout film delivers deeper colour saturation and sharper image reproduction than one-way vision perforated film, where the mesh structure reduces colour density — material for showroom graphics where photography or fine-detail patterns are required.
- 24/7 Privacy Independent of Lighting. One-way vision perforated film can allow partial interior visibility when internal lighting exceeds ambient light at night. Opaque blockout film eliminates this variable: the glass reads as solid from both sides regardless of interior lighting conditions, at any hour.
- Campaign Rotation via Heat-Assisted Removability. 3M Controltac 40C-10R and 40C-20R is removable with heat within its 7-year performance life. For Abu Dhabi retailers running seasonal programmes, this supports graphic rotation without glass damage — provided removal is by trained installers within the performance window.
- Full Glass Takeover Without Structural Work. Opaque blockout film delivers full visual blockout and a printable brand surface without glass replacement, chemical etching, or partition work. For commercial tenants in managed Abu Dhabi buildings, a film-based solution avoids modification clause obligations and stays reversible.
- Substrate Recovery Defers Replacement Cost. Where glass carries legacy adhesive, staining, or old graphics that cannot be cleanly removed, opaque blockout film restores a clean, branded surface without glass replacement. Grade and coverage confirmed at site inspection based on substrate condition and service life.
Complete the Window Branding Scope
Opaque window film handles the full-glass privacy and branding brief in isolation. For Abu Dhabi retail and commercial fit-outs that extend beyond the glass — to shopfront fascia, interior walls, fleet vehicles, or directional glass lettering — the wider window branding and signage stack can be specified alongside to cover the complete visual scope of the project.
.webp)
Frequently Asked Questions
Common inquiries about our products covering pricing, warranty and installation in Abu Dhabi.
Can I see through opaque film from inside the building?
No. Opaque blockout film delivers 100% visual blockout from both sides of the glass. There is no view-through from inside or outside, regardless of interior lighting conditions. This is its defining functional distinction from one-way vision perforated film, which retains interior-to-exterior visibility during daylight. If your brief requires visibility from inside while displaying exterior graphics, one-way vision perforated film is the correct specification. If full privacy and a print surface are both required on the same pane, opaque blockout film applies.
Can opaque film be removed without damaging the glass?
Yes. The primary material in this application, 3M Controltac Print Film 40C-10R and 40C-20R, is removable with heat-assisted application — such as a heat gun — within its 7-year expected performance life. The second-tier option, Avery MPI 2105 Easy Apply RS, supports up to 4 years long-term removability. Adhesive residue may remain after removal but is treatable with appropriate cleaning agents. Glass surfaces are not damaged by professional removal carried out within the performance life of the specified film.
What is grey-backed vinyl and why does it matter?
Grey-backed film uses a pigmented adhesive or backing layer to prevent light from passing through the graphic from behind. Without this, strong internal store lighting can effectively backlight the print surface at night, making colours appear washed out or translucent when viewed from the street. The grey backing ensures the printed surface reads as solid and colour-consistent regardless of whether interior lights are on or off — relevant for storefronts trading into evening hours in Abu Dhabi.
Can opaque film be applied to the inside of the glass?
Yes. Opaque film can be applied to the interior glass face where exterior access is not permitted — for example, in high-rise units or where building management restricts external facade work. Interior application means the print faces inward; the film backing faces the street. For interior-applied graphics where the printed surface must face outward, reverse printing on clear vinyl is an alternative method. Application side and film grade are confirmed per project at the specification stage.
