Architectural 3D Signage Specifications Guide
Technical specifications for high-durability branding. As a licensed signboard manufacturer in Abu Dhabi, Ninety Nine advertising LLC engineers DMT-compliant 3D structures, corporate lettering, and wayfinding systems designed to withstand the UAE’s coastal Marine Zone 1 climate.
.webp)
Three Technical Decisions That Define Your Signage
Aesthetics mean nothing if the structure fails inspection. Our fabrication process prioritizes three technical pillars: Façade Integration (Concealed Wiring), Lumen Compliance (Light Pollution Control), and Corrosion Resistance (Material Grade).
Structural Integration & Mounting Systems
Primary Objective: Absolute Wiring Concealment (DMT Compliance).
To secure Landlord NOCs and pass municipal inspections, we utilize three distinct mounting protocols based on your building’s façade classification.
Illumination Engineering & Protrusion Limits
Primary Objective: High-Impact Visibility within Spatial Limits.
We calibrate brightness and depth to adhere to the standard 25cm protrusion limit while maximizing brand legibility.
Material Grade Specifications (Marine Zone 1)
Primary Objective: Long-Term Weatherability.
Abu Dhabi’s high salinity and UV Index of 5+ aggressively degrade standard materials. Our fabrication standard defaults to "Marine Grade" specifications to prevent oxidation and fading.
We recommend configurations based on DMT regulations, mall design manuals, and real site conditions, not guesswork.
Decision 1: Signboard Mounting Method
Primary Driver: Compliance with wiring concealment regulations. Abu Dhabi Commercial Signage Regulations (DMT) explicitly state that "all cables to a sign shall be concealed." Visible wire loops are the leading cause of inspection failure.
.webp)

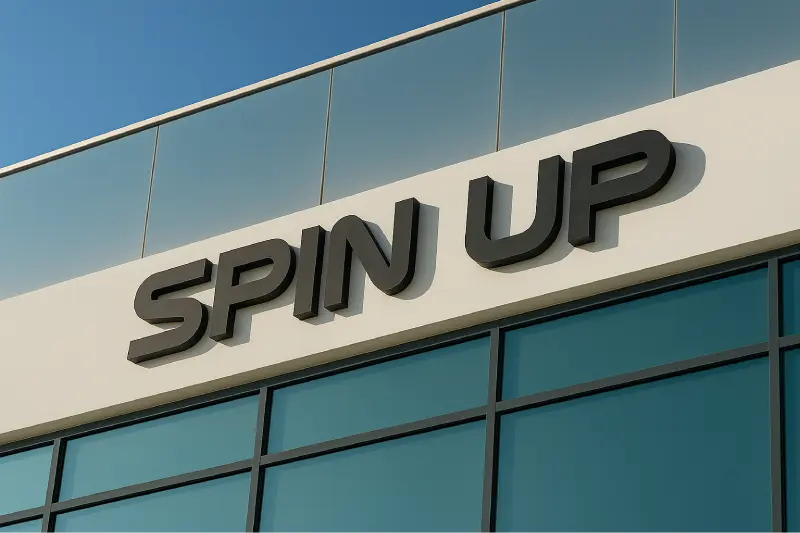

Direct Flush Mount
The Aesthetic Choice
Individual letters are mounted directly to the building surface. This offers a minimalist look but requires drilling individual holes for every letter to pass wires through the wall.
Ideal Application: Indoor corporate receptions or buildings under construction where electrical conduits were pre-installed inside the walls.
Technical Insight: If your façade is granite or glass, most landlords prohibit this method. It often requires unsightly external conduit if walls are not pre-drilled.
.webp)

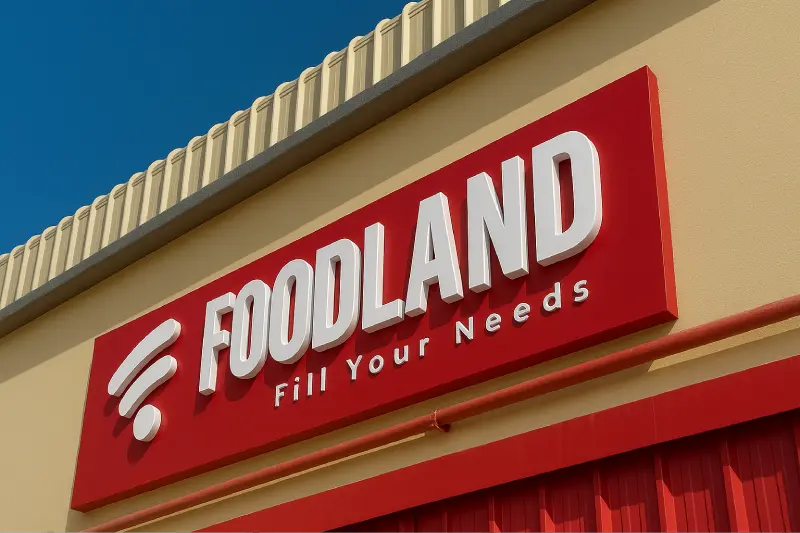

ACP Tray / Panel-Backed
The Compliance Standard
We mount 3D letters onto a fabricated Aluminum Composite Panel (ACP) tray. This creates a hollow cavity behind the sign to house all electrical wiring, transformers, and connections safely.
Ideal Application: Retail storefronts, older buildings with uneven façades, and locations where chasing walls is prohibited.
Technical Insight: It guarantees 100% concealed wiring without damaging the building façade. The tray can be color-matched to the building paint for a seamless look.

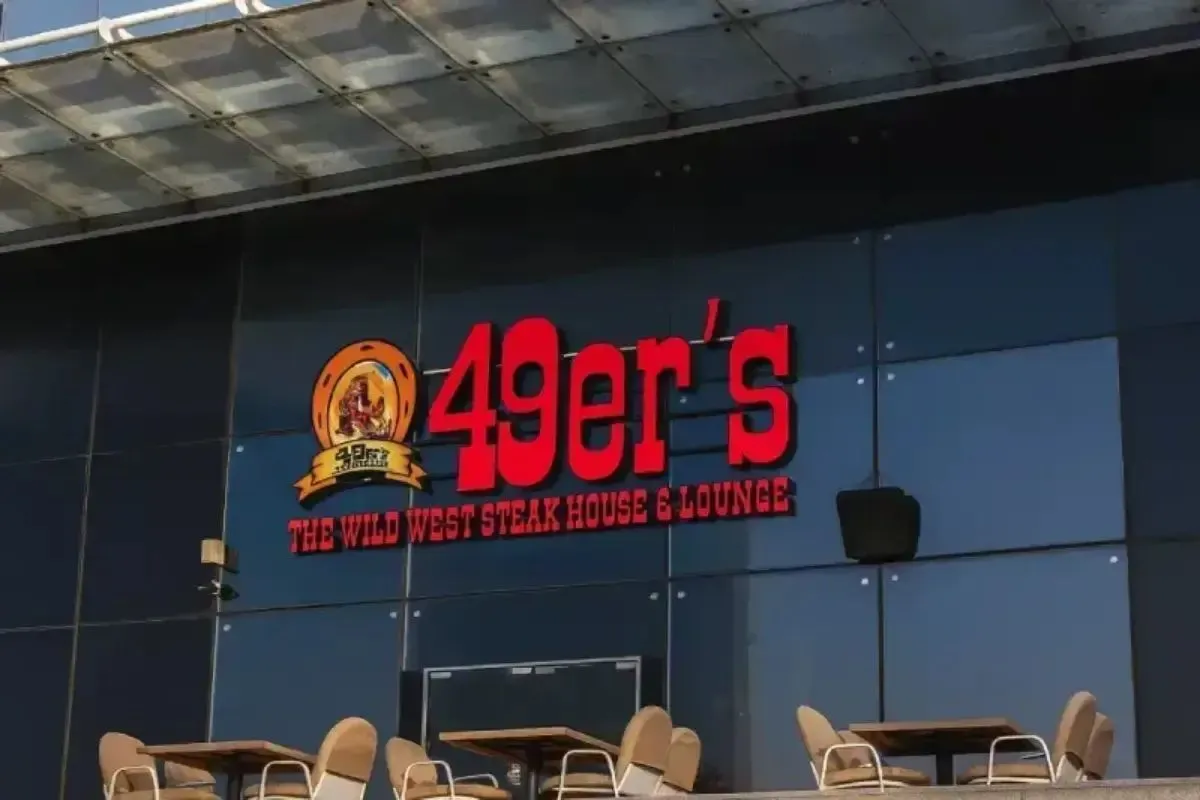

Raceway / Wireway Mount
The Industrial & High-Rise Alternative
Letters are mounted to a slim, horizontal metal track (the "raceway") that houses the wiring. This minimizes the number of anchor points required while keeping the electrical components contained.
Ideal Application: High-elevation building names (Skyline signage) where full ACP trays are too bulky or create too much wind resistance.
Technical Insight: This method significantly reduces wind load on high-rise structures and allows for easier maintenance access on difficult elevations compared to individual flush-mounted letters.
Pro Tip: Check Your Lease First.
If your tenancy contract prohibits "irreversible damage to the façade" (common in Al Maryah and Yas Island), you cannot use Direct Flush Mount. You must use an ACP Tray or a suspended system to ensure you can restore the unit upon exit.
Decision 2 – Lighting Configuration
Primary Driver: Visibility, Glare Control, and Protrusion Limits. For many ground-level retail zones, DMT regulations and Mall Design Manuals limit the projection of light fixtures and 3D elements to total protrusion max 25cm (Background <10cm + Letters <15cm) from the backing wall.
%20(1).webp)

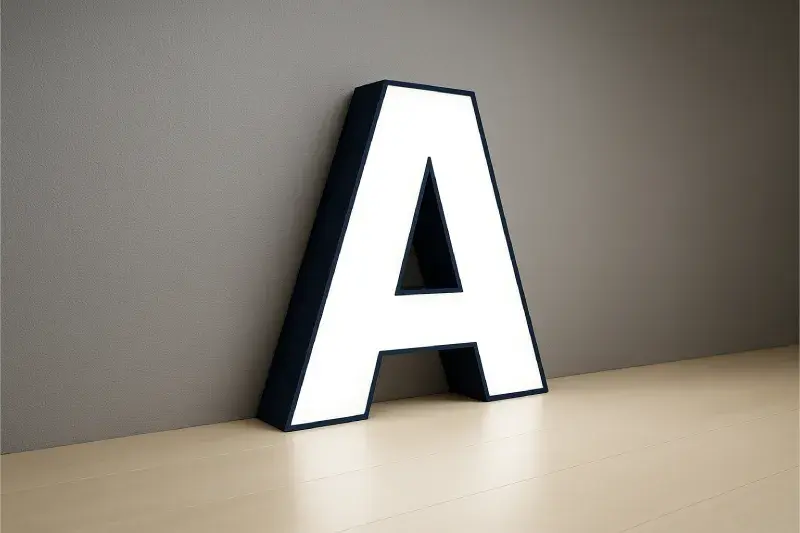

Front-Lit (Face-Lit)
High-Impact Visibility & Brand Accuracy
The face of the letter is illuminated while the returns (sides) remain opaque. This provides the highest brightness and ensures your brand colors look correct at night.
Ideal Application:
Outdoor shopfronts, pharmacies, and locations requiring maximum readability from the street.
Technical Insight:
We use "Trimless" fabrication (chemically bonded acrylic) rather than plastic trim caps. Plastic trims often crack and warp in the UAE summer heat, leading to light leaks.

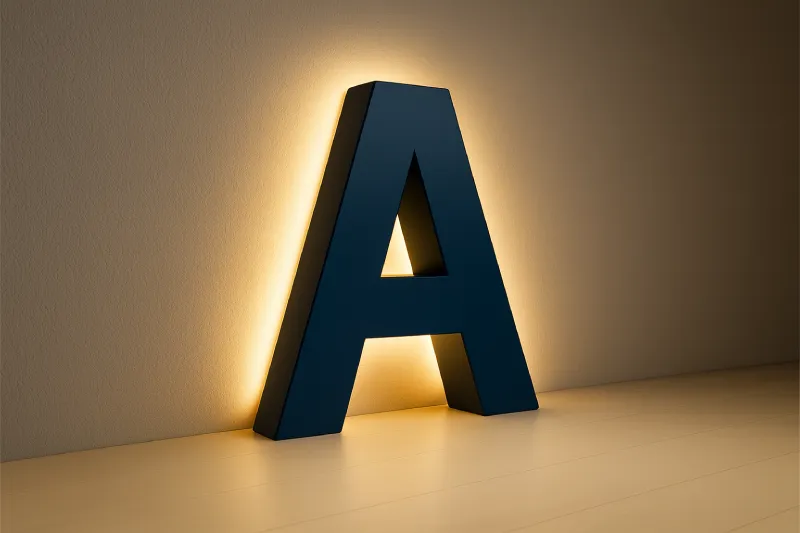

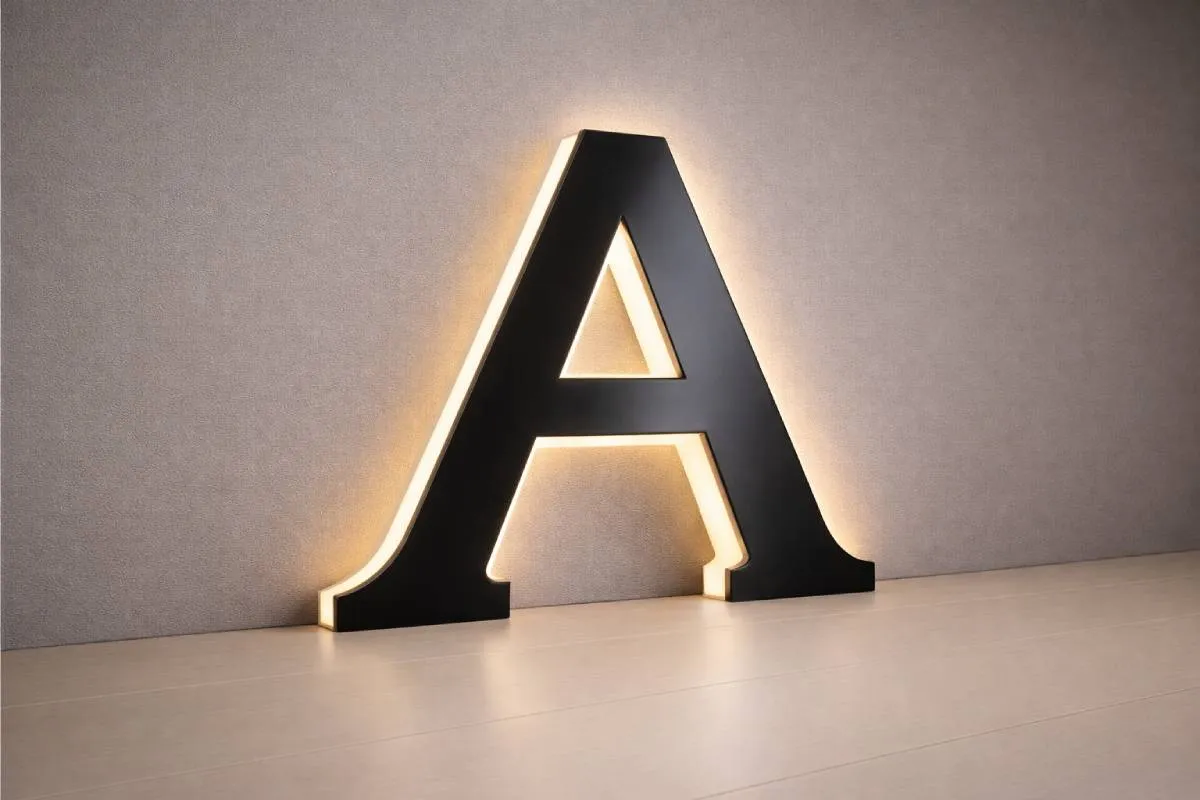

Backlit (Halo-Lit)
The Premium & Subtle Standard
Light projects backward onto the wall, creating a soft "halo" glow around the opaque letter. This prioritizes sophistication and material finish (e.g., gold or steel) over raw brightness.
Ideal Application:
Luxury boutiques, corporate lobbies, and clinics requiring a prestigious, understated aesthetic.
Technical Insight:
This method requires a matte non-reflective surface. If installed on glossy marble or glass, the individual LED dots will reflect like a mirror. In those cases, we must install a "diffuser back" to soften the light source.
Push-Through Acrylic
The Low-Profile Choice
Thick solid acrylic (10mm–50mm) is pushed through a routed metal cabinet face. The light emits from the edges and face of the acrylic, creating a 3D effect with very little physical depth.
Ideal Application:
Intricate calligraphy, complex logos, blade signs, and indoor mall retail where fine detail is required.
Technical Insight:
The only reliable solution when a logo's "stroke width" is too narrow to house LEDs. Traditional 3D fabrication is physically impossible for very small letters as there is no space for returns or lighting
Pro Tip: Check Your Lease First.
If your tenancy contract prohibits "irreversible damage to the façade" (common in Al Maryah and Yas Island), you cannot use Direct Flush Mount. You must use an ACP Tray or a suspended system to ensure you can restore the unit upon exit.
Decision 3 – Material & Finish Selection
Primary Driver: Coastal Corrosion and Heat Resistance. Abu Dhabi is technically classified as Marine Zone 1 (High Salinity / High Humidity). Materials that work in Europe or inland UAE often fail here within 12–24 months due to the aggressive climate.

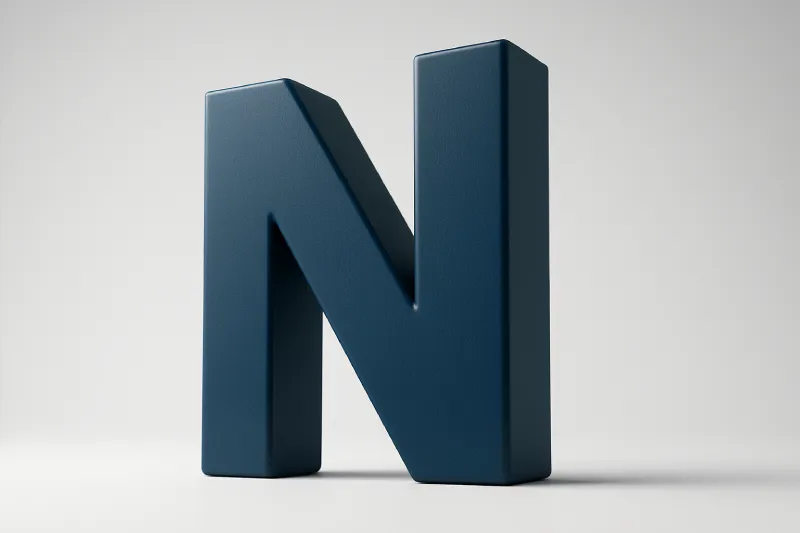

3D Aluminum Letters (Powder Coated)
The Lightweight All-Rounder
Crafted from lightweight aluminum, these letters feature a durable powder-coated finish. Unlike steel, aluminum does not rust; it only oxidizes, which is easily prevented by quality coating.
Ideal Application:
Large-scale exterior branding (Roof signs) and projects requiring specific brand-matched paint colors (RAL/Pantone).
Technical Insight:
We specify "Super Durable" Polyester Powder Coating to withstand the UV Index of 11+. Standard indoor coatings will "chalk" (turn white and powdery) within one summer season.

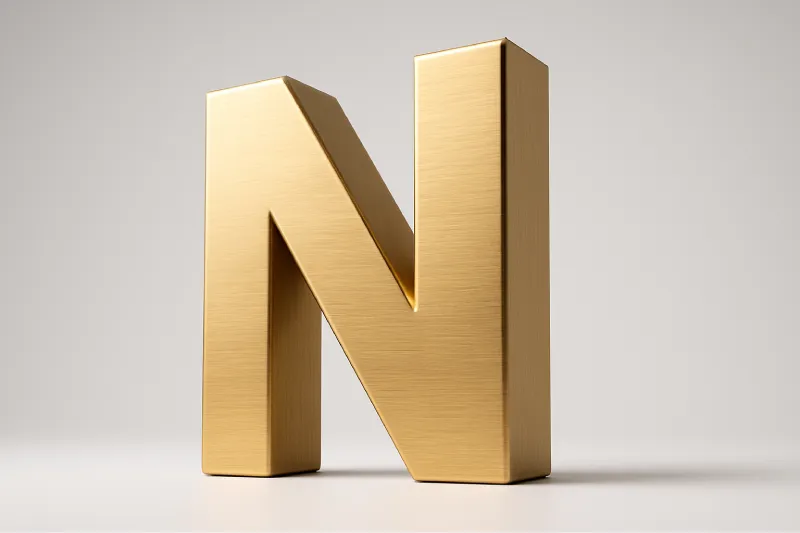

3D Stainless Steel Letters (304 & 316)
The Heavy-Duty Standard
Fabricated from high-grade alloy, available in Brushed, Polished, or Titanium Gold finishes. The grade we select depends entirely on your location’s proximity to the water.
Ideal Application:
Luxury boutiques, corporate lobbies, and managed developments on Saadiyat, Al Reem, and Al Maryah Islands.
Technical Insight:
We use Grade 304 for standard inland use and Grade 316 (Marine) for coastal areas to prevent "tea-staining" (corrosion) caused by salt air.

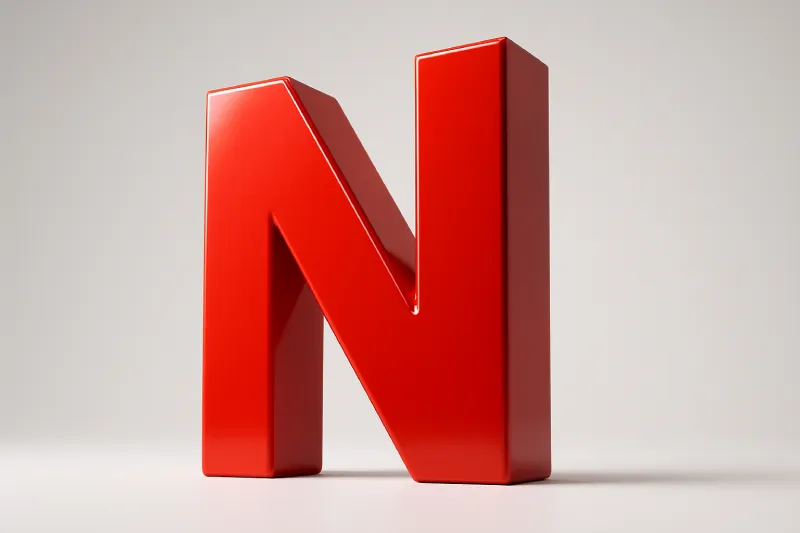

3D Acrylic Letters (Cast Acrylic)
The Illuminated Choice
Solid illuminated elements cut from high-grade cast sheets. This material is chosen for its superior clarity and ability to transmit vibrant light without distortion.
Ideal Application:
Illuminated face-lit letters, push-through signs, and logos requiring complex shapes.
Technical Insight:
We use Cast Acrylic (never Extruded). Extruded acrylic has high internal tension and will yellow or "craze" (develop thousands of tiny spider-web cracks) under the intense UAE solar heat.
Pro Tip: The "Fingerprint of Rust"
"Tea-staining" on cheap steel looks like brown, oily fingerprints. Once it starts, it is nearly impossible to stop without expensive chemical cleaning every month. Specifying 316 Grade upfront is the only permanent prevention for island locations.
Your business. The city's landmark
Project Consultation
Consult with our experts to discuss your signboard needs and receive tailored recommendations, specifications, and installation guidance. We offer free consultations and site visits throughout Abu Dhabi.
.webp)
What’s Included in Our Installation
We don't just "hang a sign." We execute a construction project.
1. Site Survey
Measuring façade dimensions, checking electrical access points, and identifying surface material.
2. Technical Drawings
Detailed protrusion depths, wiring paths, and material specs for approvals.
3. Fabrication
CNC cutting and assembly in our local workshop using grade-verified materials.
4. Installation
Conducted by safety-certified teams (working at heights) with proper anchoring.
5. Handover
Cleaning the site and providing final photos required for permit closure.
